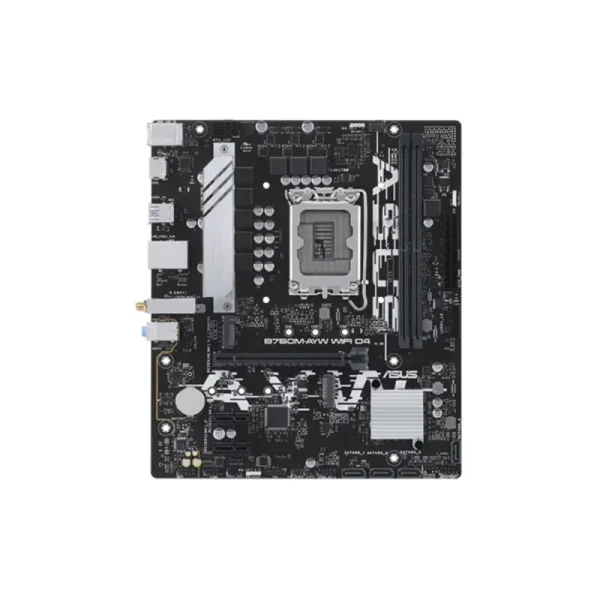

Asus B760M-AYW WIFI D4 LGA1700 Micro-ATX Motherboard

৳ 14,700.00

Key Features

  • Chipset: Intel B760 Chipset for for Intel Core 14th & 13th Gen Processors
  • Socket: Intel Socket LGA1700
  • Memory: 2 x DIMM, Max 64GB, DDR4
  • Storage: Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
  • Aura Sync RGB Lighting, Comprehensive Cooling, Ultrafast Connectivity
SKU: tt-asus-b760m-ayw-wifi-d4-lga1700-micro-atx-motherb-de82336a Categories: , ,

Specification

Motherboard
ModelB760M-AYW WIFI D4
CPUIntel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors* Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to www.asus.com for the CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU type.
ChipsetIntel B760 Chipset
Memory2 x DIMM, Max. 64GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) * Supported memory types, data rate (speed), and the number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to the CPU/Memory Support list under the Support tab of the product information site or visit https://www.asus.com/support/.
Graphics1 x HDMITM port** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports 4K@60Hz as specified in HDMI 2.1.
Expansion SlotsIntel Core Processors (14th & 13th & 12th Gen) 1 x PCIe 4.0 x16 slot Intel B760 Chipset 2 x PCIe 4.0 x1 slots Note: To ensure compatibility with the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
StorageTotal supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel Core Processors (14th &13th & 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Ethernet1 x Realtek 2.5Gb Ethernet ASUS LANGuard
Internal I/O PortsFan and Cooling-related: 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related: 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related: 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB: 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous: 2 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header
Wireless & BluetoothWi-Fi 6 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2* *The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USBRear USB (Total 6 ports) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A） Front USB (Total 4 ports) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports
AudioRealtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x HDMITM port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port
Special FeaturesASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS EZ DIY - ProCool ASUS Thermal Solution - VRM heatsink design Aura Sync - Aura RGB header - Addressable Gen 2 headers
Software FeaturesASUS Exclusive Software Armoury Crate - Aura Sync - Fan Xpert - Power Saving AI Suite 3 - DIGI+ VRM - PC Cleaner ASUS CPU-Z MyASUS Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
BIOS128 Mb Flash ROM, UEFI AMI BIOS
ManageabilityWOL by PME, PXE
AccessoriesCables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x I/O Shield 2 x M.2 anchors Documentation 1 x User guide
Operating SystemWindows 11, Windows 10 64-bit
Form FactormATX Form Factor 9.6 inch x 8.3 inch (24.4cm x 21.1cm)
Warranty3 Years Replacement Warranty *(Terms and Conditions Applied)

Description

Asus B760M-AYW WIFI D4 LGA1700 Micro-ATX Motherboard

Asus B760M-AYW WIFI D4 LGA1700 Micro-ATX Motherboard is for an individual who aims to build complex systems with the help of AI computing solutions. This motherboard supports 14th/13th/12th Gen Intel processors through the Intel B760 chipset, providing efficient performance across computing tasks. It supports PCIe 4.0 for fast data transfer, with two PCIe 4.0 M.2 slots allowing for quick and flexible storage options.

Connectivity is one of the features that comes with Realtek 2. 5Gb Ethernet guarantees high speeds of wired connections; WiFi 6 ensures strong wireless connections. The motherboard incorporates the front USB the 3. 2 Gen 1 support for optimum connectivity to the high-speed USB ports. It also has HDMI support to set up various display options easily. Cooling is well taken care of by a VRM heatsink, PCH heatsink, hybrid fan headers, and the Fan Xpert technology, to ensure that your systems run cool despite the load being put on it. The Asus B760M-AYW WIFI D4 also has Aura Sync RGB lighting with onboard Addressable Gen 2 headers and an Aura RGB header for LED strips to ensure the ability to control the lighting of all Aura Sync-compatible devices.

This motherboard has a built-in feature called Power Saving that can help save energy by controlling CPU power, dimming Aura lighting, and managing fan speeds. Another way of saving power is by powering the computer and the Microsoft Windows Power Saver plan. Asus B760M-AYW WIFI D4 targets to berth AI properly and beneficial, necessary power, connectivity, and cooling, thus, it is a perfect pick for PC builders who consider creating a future-oriented system.
