Specification
| Motherboard | |
|---|---|

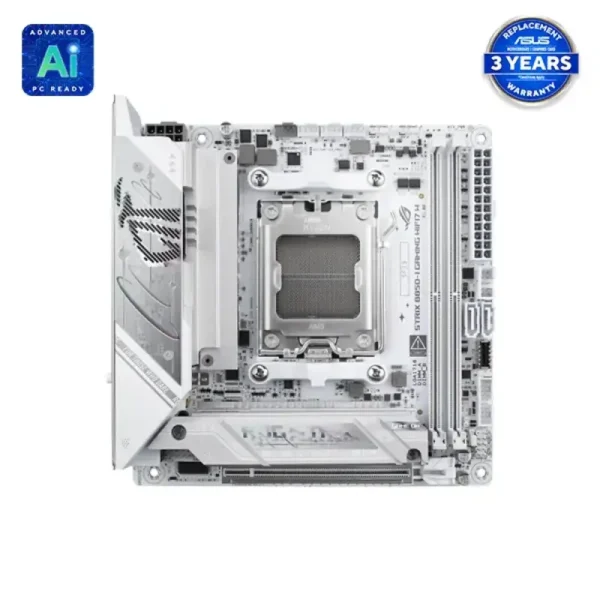

| Model | ROG Strix B850-I Gaming WiFi7 W |
| CPU | AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors* * Refer to https://www.asus.com/support/download-center/ for CPU support list. |
| Chipset | AMD B850 Chipset |
| Memory | 2 x DIMM slots, max. 128GB, DDR5 Supports up to 8200+MT/s(OC) with Ryzen 9000 Series Processors, 9600+MT/s(OC) with Ryzen 8000 Series Processors, 8000+MT/s(OC) with Ryzen 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM* Dual-channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO) ASUS Enhanced Memory Profile (AEMP) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration. For more information, please refer to the CPU/Memory Support list under the Support tab of the product information site or visit https://www.asus.com/support/download-center/. * Non-ECC, un-buffered DDR5 memory supports the On-Die ECC function. * Max Manual Overclocking: Achievable with advanced BIOS configuration and potentially specialized hardware. Results may vary according to system components. * EXPO/AEMP Profiles: Rated memory module speeds require a BIOS performance profile setting. Results may vary according to system components and can be impacted when four DIMM slots are used. |
| Graphics | 1 x HDMI port*** 1 x USB 10Gbps ports support USB Type-C display outputs**** * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. *** Supports 4K@60Hz as specified in HDMI 2.1. ****Supports max. 4K@60Hz as specified in DisplayPort 1.4a ***** VGA resolution support depends on the processor's or graphics card's resolution. |
| Expansion Slots | AMD Ryzen 9000 & 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slot with Q-Release Slim AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot with Q-Rlease Slim - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals. |
| Storage | Total supports 2 x M.2 slots and 2 x SATA 6Gb/s ports AMD Ryzen 7000 & 9000 Series Desktop Processors M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 5.0x4 mode) M.2_2 (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 4.0x4 mode) M.2_2 (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)* * Specifications vary by CPU types. |
| Ethernet | 1 x Intel 2.5Gb Ethernet ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth v5.4*** *Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E. For Windows 10, please note that no driver is available; refer to the Wi-Fi chipset vendor's website for details. ** Wi-Fi 6GHz frequency band and bandwidth regulations may vary between countries. *** The Bluetooth version may vary; please refer to the Wi-Fi module manufacturer's website for the latest specifications. |
| USB | Rear USB (Total 8 ports) 1 x USB 20Gbps port(s) (1 x USB Type-C) 5 x USB 10Gbps port(s) (4 x Type-A + 1 x USB Type-C) 2 x USB 2.0 port(s) (2 x Type-A) Front USB (Total 5 ports) 1 x USB 10Gbps 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports 1 x USB 2.0 header(s) support(s) 2 additional USB 2.0 ports USB Type-C power delivery output: max. 5V/3A |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080* - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input - Supports up to 32-bit/384 kHz playback on the front panel Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. ** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device. |
| Back Panel I/O Ports | 1 x USB 20Gbps port(s) 5 x USB 10Gbps port(s) (4 x Type-A + 1 x USB Type-C with DP Alt mode) 2 x USB 2.0 port(s) (2 x Type-A) 1 x HDMI port 1 x Wi-Fi module 1 x Intel 2.5Gb Ethernet port 3 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button 1 x FlexKey button |
| Internal I/O Connectors | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin Extra Flow Fan header 1 x 4-pin AIO Pump header 1 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage Related 2 x M.2 slots (Key M) 2 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 2 x Addressable Gen 2 headers 1 x CPU Overvoltage jumper 1 x Front Panel Audio header (F_AUDIO) 1 x 10-1 pin Front System Panel header 1 x Thermal Sensor header |
| Special Features | Extreme Engine Digi+ - 5K Black metallic capacitors ASUS Q-Design - M.2 Q-Latch - M.2 Q-Slide - PCIe Slot Q-Release Slim (with PCIe SafeSlot) - Q-Antenna - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - Clear CMOS button - ProCool - Pre-mounted I/O shield - SafeSlot Aura Sync - Addressable Gen 2 headers |
| Software Features | ROG Exclusive Software - ROG CPU-Z - Dolby Atmos ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - Aura Creator - Aura Sync - Fan Xpert 4 - GameFirst - HWiNFO - Power Saving ASUS DriverHub ASUS GlideX TurboV Core Adobe Creative Cloud (Free Trial) Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS AI Cache Boost ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey |
| BIOS | 512 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x Cable ties package 1 x M.2 backplate Q-Latch package(s) 1 x M.2 Q-Slide package 1 x ROG key chain 1 x ROG Strix stickers 1 x M.2 backplate rubber package(s) Documentation 1 x Quick start guide |
| Operating System | Windows 11 |
| Form Factor | Mini-ITX Form Factor 6.7 inch x 6.7 inch (17 cm x 17 cm) |
| Warranty | 3 Years Replacement Warranty *(Terms and Conditions Applied) |
