Specification
| Router | |
|---|---|
| IFTTT | Support IFTTT:No |
| Speed | AX1800 ultimate AX performance : 1201 Mbps+ 574 Mbps |

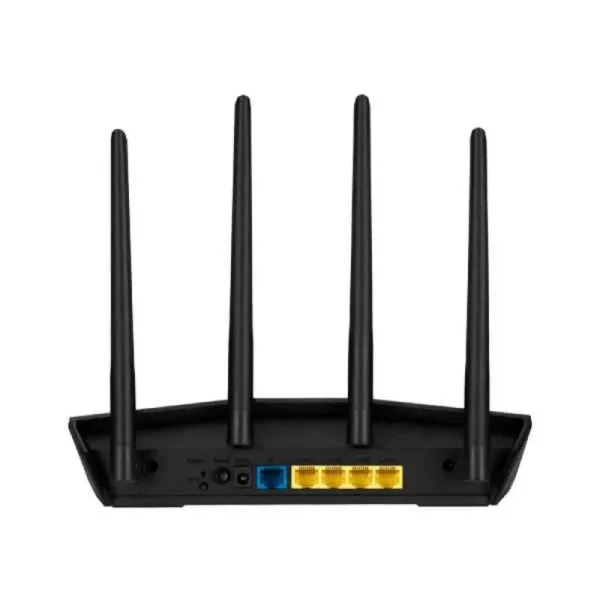

| Model Name | RT-AX55 |
| Network Standard | IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11n IEEE 802.11ac IEEE 802.11ax IPv4 IPv6 |
| AX technology | Yes |
| Antenna | External antenna x 4 |
| Transmit/Receive | 2.4 GHz 2 x 2 5 GHz 2 x 2 |
| Processor | 1.5GHz quad-core processor |
| Memory | 128 MB Flash 256 MB RAM |
| Boosts speed | OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 1024-QAM high data rate 20/40/80 MHz bandwidth |
| Operating Frequency | 2.4G Hz / 5 GHz |
| Ports | RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 4 |
| Button | WPS Button, Reset Button, Power Switch |
| LED Indicator | Power x 1 2.4G x 1 5G x 1 LAN x 1 WAN x 1 |
| Power Supply | AC Input : 110V~240V(50~60Hz) DC Output : 12 V with max. 1 A current |
| Package content | RT-AX55 RJ45 x1 Adapter x1 QSG x1 Warranty Card x1 |
| Product Weight (g) | 374g |
| AiMesh | AiMesh:Yes Primary AiMesh router:Yes AiMesh node:Yes |
| Router APP | ASUS Router APP:Yes |
| Game | Game Boost/acceleration:No WTFast:No |
| AiProtection | AiProtection:AiProtection Classic Malicious site blocking:Yes Two-Way IPS:No Infected Device Prevention and Blocking;Yes |
| Parental Control | Parental Control:Yes Parental Control Customized Internet schedule:Yes |
| Traffic Control | Adaptive QoS:Yes Bandwidth limiter:Yes Traditional QoS:Yes Traffic Monitor:Yes Real-time traffic monitor:Yes Wired Traffic Monitor:Yes Wireless Traffic Monitor:Yes Website history:Yes |
| Wireless | IPv6:Yes MU-MIMO:Yes Wi-Fi Encryption:Open system, WPA/WPA2-Personal, WPA/WPA2-Enterprise, WPA3-Personal UTF-8 SSID:Yes Guest Network:Yes WPS:Yes Wi-Fi MAC address filter:Yes Wireless scheduler:Yes Airtime fairness:Yes RADIUS Server:Yes Universal beamforming:Yes Explicit beamforming:Yes |
| WAN | Internet connection Type:PPPoE, PPTP, L2TP, Automatic IP, Static IP Dual WAN:No WAN Aggregation:No 3G/4G LTE dongle:No Port triggering:Yes DMZ:Yes DDNS:Yes Let’s Encrypt:Yes |
| LAN | DHCP Server:Yes IGMP snooping:Yes IPTV:Yes LAN Link Aggregation:No Manually assign IP address:Yes |
| VPN | VPN Client L2PT:Yes VPN Client OVPN:Yes VPN Client PPTP:Yes VPN Server IPSec:Yes VPN Server OVPN:Yes VPN Server PPTP:Yes VPN Fusion:No |
| USB application | HDD hibernation:No Safely Remove disk:No AiCloud:No Download master:No AiDisk:No Media Server:No Time Machine:No Samba Server:No FTP Server:No Shared Folder privileges:No |
| Administration | Operating mode:Access Point, AiMesh Node, Media Bridge, Repeater, Router Operating system:ASUSWRT Free OS upgrade:Yes Firewall:Yes Wake on LAN (WOL):Yes SSH:Yes Configuration backup and restore:Yes Diagnosis tools:Yes Feedback system:Yes System log:Yes |
