Cooler Master MasterFrame 500 Mesh Mid-Tower E-ATX Desktop Casing – Silver

৳ 17,500.00

Key Features

  • Mini-ITX to E-ATX support for wide build compatibility
  • Dual 200 mm + 120 mm fans for strong airflow
  • Dual 360 mm radiator support for liquid cooling
  • Modular open-frame design for full customization
  • 390 mm GPU support with a bracket for stability
SKU: tt-cooler-master-masterframe-500-mesh-mid-tower-e-a-462d8e7a Categories: , , , , , ,

Specification

Cooler Master Casing
ModelMF500M-SHNN-S01
Exterior ColorSilver
Materials - ExteriorSGCC Steel, Aluminum
Materials - Side panel (Right / Left)Tempered Glass
Dimensions (L x W x H)471 x 261 x 544 mm (Incl. Protrusions) 471 x 261 x 531 mm (Excl. Protrusions)
Volume60.9 L (Excl. Protrusions)
Motherboard SupportMini-ITX, Mini-DTX, Micro-ATX, ATX , E-ATX*, SSI-CEB* ​(*Conditional Support)
Expansion SlotsPCI Expansion Slots: 8
Drive Bays - 3.5" HDD0
Drive Bays - 3.5" / 2.5" Combo2.5" / 3.5" Drive Bays (or SSD): 1 (Bottom) Preinstalled Drive Bays - 3.5" / 2.5" Drive Bay (or SSD): 1x 2.5 or 1x 3.5
I/O PanelI/O Panel - USB Ports: 2x USB 3.2 Gen 1 Type A, 1x USB 3.2 Gen 2x2 Type C I/O Panel - Audio In / Out: 1x 3.5mm Headset Jack (Audio+Mic)
Included AccessoriesGPU Support Bracket
Fan SupportFan Support - Front: 3x 120mm, 2x 140mm, 2x 180mm, 2x 200mm Fan Support - Top: 3x 120mm, 2x 140mm, 2x 180mm, 2x 200mm Fan Support - Rear: 1x 120mm Fan Support - Bottom: 1x 120mm
Pre-installed FansPre-installed Fans - Front: ARGB: 2x SickleFlow 200mm ARGB, Non-ARGB: 2x SickleFlow 200mm Pre-installed Fans - Rear: ARGB: 1x 120 mm ARGB, Non-ARGB: 1x 120 mm
Radiator SupportRadiator Support - Front: 120 / 140 / 240 / 280 / 360m Radiator Support - Top: 120 / 140 / 240 / 280 / 360mm Radiator Support - Rear: 120 mm
Clearances - CPU Cooler190 mm
Clearances - Power Supply235 mm
Cable RoutingCable Routing - Behind Motherboard Tray: 43 mm
Clearances - Graphics Card390 mm
Dust FiltersMesh Only (Removable Filters)
Power Supply SupportATX
SizeMid Tower
SeriesMasterFrame Series

Description

Cooler Master MasterFrame 500 Mesh Mid-Tower E-ATX Desktop Casing - Black Price in BD

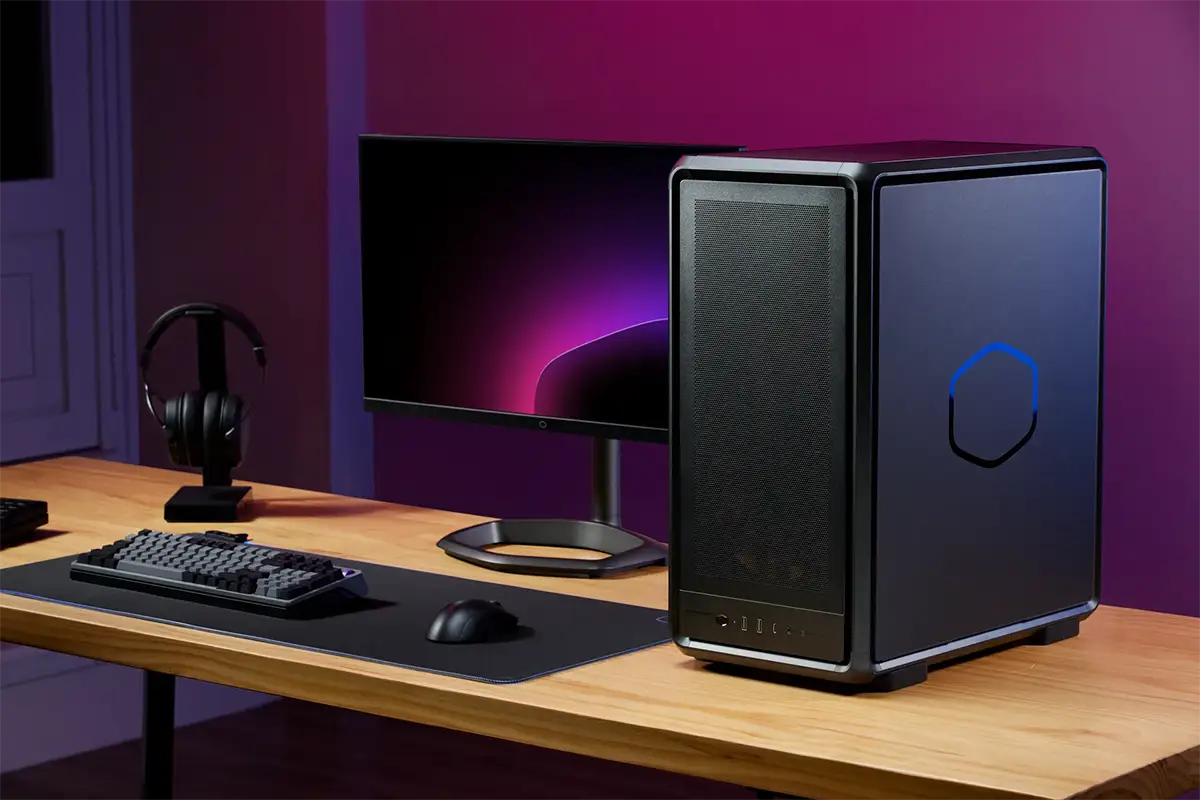

Cooler Master MasterFrame 500 Mesh Mid-Tower E-ATX Desktop Casing - Silver

Cooler Master MasterFrame 500 Mesh Mid-Tower E-ATX Desktop Casing is a high-end open PC case designed for powerful computers, efficient cooling, and flexible configuration. The case supports a broad range of motherboards, from small form factor Mini-ITX up to larger E-ATX. This PC case features a unique open aluminum frame, designed around the FreeForm 2.0 standard, allowing for flexible configuration and modification. The open aluminum frame and modular design of this PC case enable flexible configuration and modification.

One of the greatest advantages of this PC case is efficient cooling. The PC case supports up to eight fans and two 360mm radiators, ensuring optimal cooling even in high-performance usage. The PC case ships with installed fans, either ARGB or non-ARGB, featuring two 200mm front ARGB PWM fans and a single 120mm ARGB PWM fan for the rear. The MasterFrame 500 Mesh also offers great hardware support. The case supports graphics cards up to 390 mm in length. This means that it is already compatible with high-end graphics cards. The case also includes a GPU support bracket that helps prevent sag and ensure stability in your system, especially during gaming.

The tempered glass panel gives users an unobstructed view of the internal components. The case also offers tool-free panel removal for easy installation and upgrade. The case also offers a modern front I/O panel that includes a USB 3.1 Type-C connector for fast data transfer and connectivity. The MasterFrame 500 Mesh is available in Black and Silver. This case offers great hardware support and is ideal for users who want to have total control over their system.
