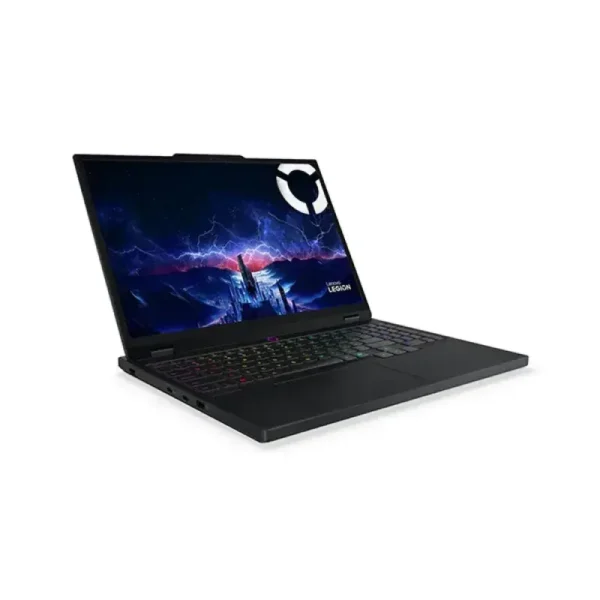

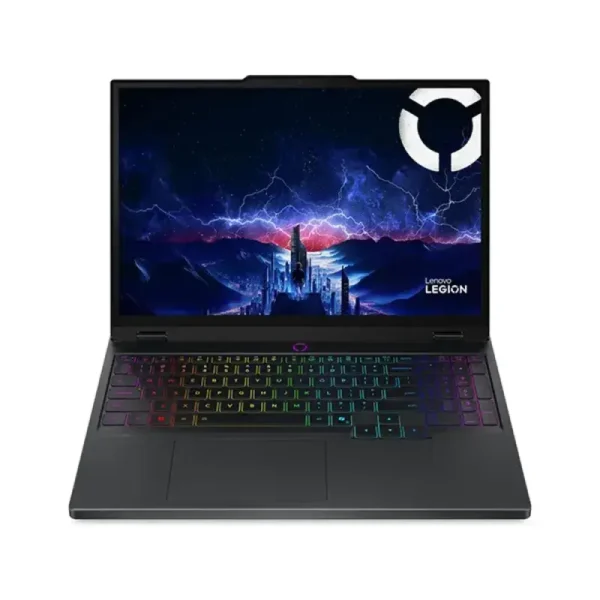

Lenovo Legion 5i 15IRX10 AI-Powered Gaming (83LY009YLK) 14th Gen Core i7-14700HX 24GB RAM 512GB SSD RTX 5070 15.1-inch OLED Gaming Laptop

Key Features

  • Graphics: NVIDIA GeForce RTX 5070 Laptop GPU with 798 AI TOPS
  • Processor: 14th Gen Intel Core i7-14700HX Processor with LA1 AI Chip
  • RAM & Storage: 24GB DDR5-4800 SO-DIMM Memory, 512GB M.2 PCIe 4.0×4 NVMe SSD
  • Connectivity: Wi-Fi 7, 802.11be 2×2 + Bluetooth 5.4
  • Display: 15.1-inch WQXGA (2560×1600) OLED Display
SKU: tt-lenovo-legion-5i-15irx10-ai-powered-gaming-83ly0-ab9eb285 Categories: , , , ,

Specification

Processor
Processor BrandIntel
Processor ModelIntel Core i7-14700HX
Processor FrequencyUpto 5.5GHz
Processor Core20 Core (8P + 12E)
Processor Thread28 Threads
CPU Cache33MB
ChipsetIntel HM770 Chipset
AI ChipLA1
Display
Display Size15.1-inch
Display TypeOLED
Display ResolutionWQXGA (2560x1600)
Display FeaturesGlossy Dolby Vision DisplayHDR True Black 600
Brightness500nits
Refresh Rate165Hz
Color Gamut100% DCI-P3
Memory
RAM24 GB (2x 12GB SO-DIMM)
RAM TypeDDR5-4800
Total RAM SlotTwo DDR5 SO-DIMM slots Dual-channel capable
Max MemoryUp to 32GB DDR5-4800 offering
Storage
Storage Capacity512GB
Storage TypeM.2 PCIe 4.0x4 NVMe SSD
Extra M.2 SlotYes
Storage UpgradeYes
Storage SupportMax Storage Support: Up to two drives, 2x M.2 SSD M.2 2242 SSD up to 1TB each Storage Slot: Two M.2 2280 PCIe 4.0 x4 slots
Graphics
Graphics ModelNVIDIA GeForce RTX 5070 Laptop GPU
AI TOPS798 AI TOPS
Graphics Memory8GB
Graphics TypeGDDR7 (Boost Clock 2347MHz)
Graphic WattageTGP 115W
Keyboard & TouchPad
Keyboard Type24-Zone RGB Backlit, English (EU)
TouchPadButtonless Mylar surface multi-touch touchpad, supports Precision TouchPad (PTP), 75 x 120 mm (2.95 x 4.72 inches)
NumberPadYes
Camera & Audio
WebCam5.0MP with E-shutter
SpeakerStereo speakers 2W x2, Audio by HARMAN Optimized with Nahimic Audio
Microphone2x, Array
Audio FeaturesHigh Definition (HD) Audio Realtek ALC3287 codec
Ports & Slots
HDMI Port1x HDMI 2.1, up to 8K/60Hz
USB 3 Port2x USB-A (USB 5Gbps / USB 3.2 Gen 1) 1x USB-A (USB 5Gbps / USB 3.2 Gen 1), Always On
Headphone & Microphone Port1x Headphone/microphone combo jack (3.5mm)
USB Type-C / Thunderbolt Port1x USB-C (USB 10Gbps / USB 3.2 Gen 2), with USB PD 65-100W and DisplayPort 2.1 1x USB-C (USB 10Gbps / USB 3.2 Gen 2), with DisplayPort 1.4
RJ45 LAN port1x Ethernet (RJ-45)
Power connector1x Power connector
Network & Connectivity
LAN100/1000M (RJ-45)
WiFiWi-Fi 7, 802.11be 2x2
BluetoothBT5.4
Security
Security ChipFirmware TPM 2.0 Enabled
Security FeatureE-shutter
Camera Privacy ShutterE-Shutter
Software
Operating SystemWindows 11 Home Single Language, English
Bundled SoftwareOffice Trial
Power
Battery Capacity80Wh
Adapter Type245W Slim Tip (3-pin)
Physical Specification
ColorEclipse Black
Dimensions344.9 x 255.35 x 19.95-21.54 mm (13.58 x 10.05 x 0.79- 0.85 inches)
WeightStarting at 1.9 kg (4.19 lbs)
Body MaterialSurface Treatment: Aluminium Stamping (Anodized with Sandblasting) Case Material: Aluminium (Top), PC-ABS + 15% Talc (Bottom)
Additional
CertificationGreen Certifications: ErP Lot 6/26 RoHS compliant Other Certifications: TÜV Rheinland Flicker Free TÜV Rheinland High Gaming Performance TÜV Rheinland Low Blue Light (Hardware Solution)
Warranty
Warranty Details2 Years (Battery + Adapter 1 Year)

Description

Lenovo Legion 5i 15IRX10 AI-Powered Gaming (83LY009YLK) 14th Gen Core i7-14700HX 24GB RAM 512GB SSD RTX 5070 15.1-inch OLED Gaming Laptop

Experience the ultimate gaming experience with the Lenovo Legion 5i 15IRX10 AI-Powered Gaming (83LY009YLK) 14th Gen Core i7-14700HX 24GB RAM 512GB SSD RTX 5070 15.1-inch OLED Gaming Laptop. It is powered by the latest 14th Gen Core i7-14700HX processor, which provides 20 Cores (8 P-cores + 12 E-cores) and 28 Threads, with a maximum boost of up to 5.5 GHz and a 33MB cache. This powerful processor offers seamless multitasking capabilities, enabling it to handle even the most demanding games and applications easily. Equipped with the latest NVIDIA GeForce RTX 5070 8GB GDDR7 graphics card with boost clock 2347MHz and TGP 115W, which provides lifelike visuals, ray tracing, and smooth frame rates. So, gamers can enjoy an ultimate gaming experience. Its 798 AI TOPS make it extremely fast at performing AI tasks and enhancing real-time features efficiently. This Lenovo AI POWERED Legion Pro 5i Gaming Laptop comes with the latest dual-channel 2x 12GB DDR5-4800 bus SO-DIMM memory. It has a massive 512GB M.2 2242 PCIe 4.0x4 NVMe SSD that delivers the highest performance and fastest response times for all workloads. It offers 2x M.2 SSD (Up to 1TB each). This Lenovo Legion 5i AI-Powered Gaming Laptop has a 15.1-inch WQXGA (2560x1600), 500nits brightness, 165Hz refresh rate OLED display. This glossy display comes with many features such as Dolby Vision, DisplayHDR True Black 600.

For long-term backup, this laptop is integrated with a massive 80Wh battery. With this large amount of battery capacity, gamers can enjoy marathon gaming sessions without the need for frequent recharging breaks. For better wireless connectivity, it has the latest Intel Killer Wi-Fi 7, 802.11be 2x2 + BT5.4 Wireless Card. Also, it has 100/1000M (RJ-45) LAN connectivity. So, users can experience seamless gaming and smoother video streaming. It has a variety of ports, including 2x USB-A (USB 5Gbps / USB 3.2 Gen 1), 1x USB-A (USB 5Gbps / USB 3.2 Gen 1), Always On, 1x USB-C (USB 10Gbps / USB 3.2 Gen 2), with USB PD 65-100W and DisplayPort 2.1, 1x USB-C (USB 10Gbps / USB 3.2 Gen 2), with DisplayPort 1.4, 1x HDMI 2.1, up to 8K/60Hz, 1x Headphone/microphone combo jack (3.5mm), 1x Ethernet (RJ-45), 1x Power connector.

The 5.0MP with E-shutter webcam is ideal for live-streaming, video conferences, and online classes. This laptop comes with Stereo speakers, 2W x2, audio by HARMAN, optimized with Nahimic Audio that provides a stunning audio experience. This laptop comes with a 24-Zone RGB Backlit, English (EU) keyboard that helps in low-light areas. The Firmware TPM 2.0 Enabled provides security against threats like firmware and ransomware attacks. The genuine Windows 11 Home Single Language, English, is preloaded on this laptop. The Eclipse Black of this laptop offers a sleek and stylish look. Box content includes a Lenovo Legion 5i 15IRX10 AI-Powered Gaming Laptop, 245W Slim Tip (3-pin) power adapter, and user manuals. For peace of mind, Lenovo provides a 2-year brand warranty on laptops and a 1-year warranty on power adapters.
