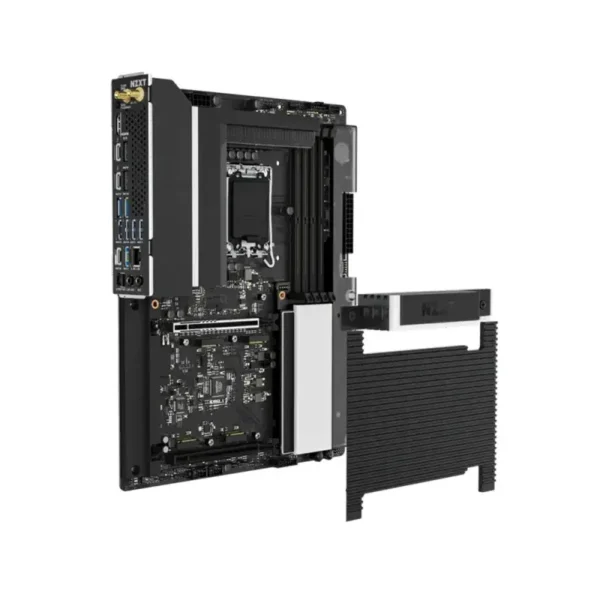

NZXT N9 Z890 Intel LGA1851 Wi-Fi 7 ATX Gaming Motherboard - Black
NZXT N9 Z890 Intel LGA1851 Wi-Fi 7 ATX Gaming Motherboard - Black is designed for Intel Core Ultra (Series 2) processors, delivering strong performance, advanced connectivity, and a clean, modern look. Built with the Intel Z890 chipset and LGA 1851 socket, it supports high-speed DDR5 memory with four dual-channel DIMM slots, capable of speeds over 8000+ MT/s, and Intel XMP 3.0 for optimized performance. The motherboard features a 20+1+1 power phase design with 110A SPS and an 8-layer 2-oz copper PCB for stable operation and reliable overclocking. For cooling, it includes a VRM heatsink array with a fin stack, heat pipe, thermal pads, dual PWM fans, and dedicated heatsinks for all M.2 slots.
Expansion options include one PCIe 5.0 x16 slot for next-gen GPUs and one PCIe 4.0 slot for high-speed add-ons. Storage is supported through one PCIe 5.0 M.2 slot and four PCIe 4.0 M.2 slots, plus four SATA 6Gb/s ports. Connectivity is enhanced with Thunderbolt 4, Wi-Fi 7 (320MHz), 5GbE LAN, and Bluetooth 5.4. The rear I/O includes two Thunderbolt 4 ports, one HDMI, multiple USB 3.2 Gen 2 and Gen 1 ports, one USB 3.2 Gen 2x2 Type-C, audio jacks, optical S/PDIF, and a clear CMOS button. Internal headers provide multiple fan, RGB, USB, and front panel connections for custom builds.
Overview of NZXT N9 Z890 Intel LGA1851 Wi-Fi 7 ATX Gaming Motherboard:
- Intel LGA 1851 Socket: Designed for Intel Core Ultra processors, enhancing thermal contact and reducing mounting pressure.
- Superior Power: Robust 20+1+1 power phase design with 110A SPS and an 8-layer, low-loss 2-oz copper PCB.
- Advanced Cooling: VRM heatsink array, fin stack, heat pipe, thermal pads, dual PWM fans, and dedicated heatsinks for all M.2 slots.
- PCIe 5.0 Expansion: PCIe 5.0 x16 slot for next-gen GPUs, PCIe 4.0 slot for high-speed add-ons.
- High-Speed Storage: One PCIe 5.0 and four PCIe 4.0 M.2 slots for ultra-fast storage speeds.
- DDR5 Memory: Four dual-channel DIMM slots support DDR5 RAM speeds of 8000+ MT/s.
- Next-Gen Connectivity: Thunderbolt 4, Wi-Fi 7 (320 MHz), and 5GbE.
- Sleek and Stylish: Premium full-metal cover with customizable RGB lighting.
Measuring in ATX form factor, the N9 Z890 features a black full-metal cover that hides the PCB for a neat build, with onboard customizable RGB lighting for personalization. It is compatible with Windows 10/11 64-bit systems and comes with a 3-year brand warranty. The NZXT N9 Z890 is a powerful and versatile choice for gaming and high-performance PC builds, offering speed, efficiency, and style in one package.
