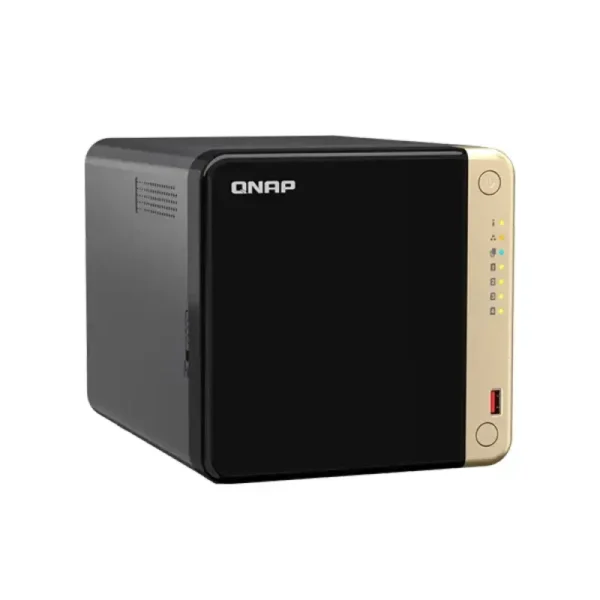

QNAP TS-464-8G 4 Bay Tower Desktop NAS Storage

Key Features

  • Form Factor: Tower
  • CPU: Intel Celeron N5095 4-core/4-thread processor
  • System Memory: 8 GB SODIMM DDR4 (1 x 8 GB)
  • Drive Bay: 4 x 3.5-inch SATA 6Gb/s
  • Warranty: 3-Year Brand Warranty
  • CALL FOR DETAILS: +880 1969-633091

Out of stock

SKU: tt-qnap-ts-464-8g-4-bay-tower-desktop-nas-storage-dcd18c4b Categories: , ,

Specification

QNAP Tower Server Storage
CPUIntel Celeron N5095 4-core/4-thread processor, burst up to 2.9 GHz
CPU Architecture64-bit x86
Graphic ProcessorsIntel UHD Graphics
Floating Point UnitYes
Encryption EngineYes (AES-NI)
Hardware-accelerated TranscodingYes
System Memory8 GB SODIMM DDR4 (1 x 8 GB) Since 2024/01
Maximum Memory16 GB (2 x 8GB)
Memory Slot2 x SODIMM DDR4
Flash Memory4GB (Dual boot OS protection)
Drive Bay4 x 3.5-inch SATA 6Gb/s The system is shipped without HDD. For the HDD compatibility list, please visit https://www.qnap.com/compatibility/
Drive Compatibility3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives
Hot-swappableYes (Not supported M.2 SSD)
M.2 Slot2 x M.2 2280 PCIe Gen 3 x1 If a heatsink is to be installed, it is recommended that the top heatsink dimensions be less than 68 x 20 x 10 mm (L x W x H)
SSD Cache Acceleration SupportYes
2.5 Gigabit Ethernet Port (2.5G/1G/100M)2 (2.5G/1G/100M/10M)
5 Gigabit Ethernet Port (5G/2.5G/1G/100M)Optional via PCIe expansion card
10 Gigabit Ethernet PortOptional via PCIe expansion card
Wake on LAN (WOL)Yes
Jumbo FrameYes
PCIe Slot1 Slot 1: PCIe Gen 3 x2 Card dimensions for PCIe slot:190 x 68.9x 18.76 mm / 7.48 x 2.71 x 0.74 inches.
USB 2.0 port2
USB 3.2 Gen 2 (10Gbps) Port2 x Type-A
HDMI Output1, HDMI 2.1 (up to 4096 x 2160 @ 60Hz)
Form FactorTower
LED IndicatorsPower/Status, LAN, USB, HDD1-4
ButtonsPower, USB copy, Reset
Dimensions (HxWxD)6.5 × 6.69 × 8.92 inch Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model)
Weight (Net)4.98 lbs
Weight (Gross)7.91 lbs
Operating Temperature0 - 40 °C (32°F - 104°F)
Storage Temperature-20 - 70°C (-4°F - 158°F)
Relative Humidity5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit90W adapter, 100-240V
Power Consumption: Disk Standby Mode21.618 W
Power Consumption: Operating Mode, Typical40.536 W Tested with drives fully populated.
Fan1 x 120mm, 12VDC
System WarningBuzzer
Kensington Security SlotYes
Max. Number of Concurrent Connections (CIFS) - with Max. Memory1500
Warranty3-Year Brand Warranty

Description

QNAP TS-464-8G 4 Bay Tower Desktop NAS Storage

QNAP TS-464-8G 4 Bay Tower Desktop NAS Storage

QNAP TS-464-8G 4 Bay Tower Desktop NAS Storage is a high-performance network storage solution made for home users, studios, and small to medium businesses that need speed, flexibility, and stable data access. It runs on an Intel Celeron N5095 4-core processor with boost speed up to 2.9GHz and a 64-bit x86 architecture, paired with Intel UHD Graphics, floating point support, AES-NI encryption, and hardware-accelerated transcoding for smooth media and file handling.

This NAS comes with 8GB DDR4 SODIMM memory pre-installed and supports up to 16GB through two memory slots. It also includes 4GB flash memory with dual boot OS protection for system safety. The unit supports four 3.5-inch SATA drive bays and also works with 2.5-inch SATA SSDs, with hot-swap support for easy drive changes. Two M.2 2280 PCIe Gen 3 slots are available for SSD cache acceleration, helping improve system and storage speed. Hard drives are not included. For networking, it offers two built-in 2.5 Gigabit Ethernet ports with Wake on LAN and Jumbo Frame support. Optional PCIe expansion allows upgrade to 5GbE or 10GbE networking. Connectivity also includes two USB 2.0 ports, two USB 3.2 Gen 2 ports, and one HDMI 2.1 output that supports up to 4K at 60Hz. A PCIe Gen 3 slot allows further expansion options.

The tower design includes clear LED indicators, power, USB copy, and reset buttons, and a quiet 120mm cooling fan. It supports up to 1500 concurrent CIFS connections, uses a 90W power adapter, and operates efficiently in both standby and active modes. The QNAP TS-464-8G comes with a 3-year brand warranty.
