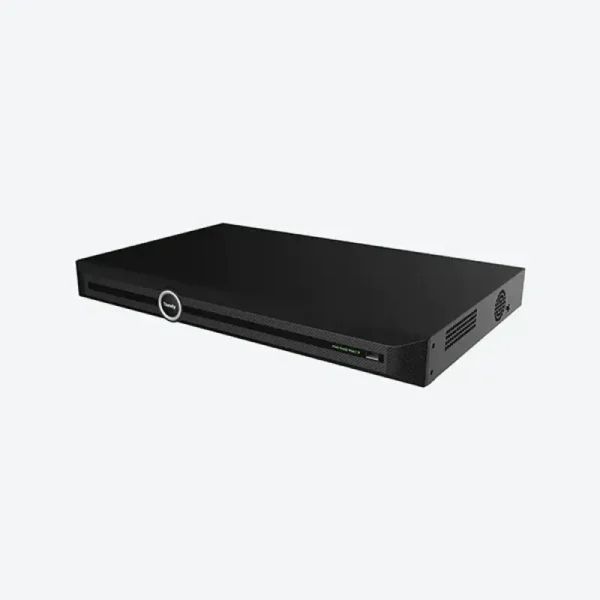

Tiandy TC-R3240 Spec:I/B/N/H/V4.1 2HDD 40ch NVR
Tiandy TC-R3240 Spec:I/B/N/H/V4.1 2HDD 40ch NVR
Tiandy TC-R3240 Spec:I/B/N/H/V4.1 2HDD 40ch NVR
  1. Tiandy TC-R3240 Spec:I/B/N/H/V4.1 2HDD 40ch NVR
  2. Tiandy TC-R3240 Spec:I/B/N/H/V4.1 2HDD 40ch NVR
  3. Tiandy TC-R3240 Spec:I/B/N/H/V4.1 2HDD 40ch NVR

Tiandy TC-R3240 Spec:I/B/N/H/V4.1 2HDD 40ch NVR

Key Features

  • Up to 40-ch IP camera accesses
  • Incoming/Outgoing bandwidth: 400Mbps/400Mbps
  • 16-ch synchronous playback
  • Up to 10 TB capacity for each HDD
  • Max. decoding capability: 16MP(30fps)×2 or 1080P(30fps)×20
  • CALL FOR DETAILS: +880 1973-439218

Out of stock

SKU: tt-tiandy-tc-r3240-spec-i-b-n-h-v4-1-2hdd-40ch-nvr-86c99e4b Categories: ,

Specification

Tiandy NVR
Video and AudioAccess Channel: 40 Incoming Bandwidth: 400Mbps Outgoing Bandwidth: 400Mbps Resolution: 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF Preview Decoding Capability: 16MP(30fps)×2, 12MP(30fps)×3, 8MP(30fps)×5, 6MP(30fps)×6, 5MP(30fps)×8, 4MP(30fps)×10, 3MP(30fps)×13, 1080P(30fps)×20, 720P(30fps)×40, 4CIF(30fps)×40 Playback Decoding Capability: 16MP(30fps)×2, 12MP(30fps)×3, 8MP(30fps)×5, 6MP(30fps)×6, 5MP(30fps)×8, 4MP(30fps)×10, 3MP(30fps)×13, 1080P(30fps)×20, 720P(30fps)×40, 4CIF(30fps)×40 Third-party Camera Access: ONVIF(Profile S/T); RTSP HDMI Output: HDMI: 800×600(60Hz), 1024×768(60Hz), 1280×720(50Hz/60Hz), 1280×800(60Hz), 1280×1024(60Hz), 1366×768(60Hz), 1440×900(60Hz), 1920×1080(50Hz/60Hz), 2560×1440(30Hz/60Hz), 2560×1600(60Hz), (4K)3840×2160(30Hz/60Hz) VGA Output: VGA: 800×600(60Hz), 1024×768(60Hz), 1280×720(50Hz/60Hz), 1280×800(60Hz), 1280×1024(60Hz), 1366×768(60Hz), 1440×900(60Hz), 1920×1080(50Hz/60Hz) Multi-screen Display: Independent Output: HDMI: 1/2/3/4/5/6/7/8/9/10/12/13/16/20A/20B/25/32/36/40 VGA: 1/2/3/4/5/6/7/8/9/10/12/13/16/20A/20B/25/32/36/40 Audio Input: 1-ch, 3.5mm Audio Output: 1-ch, RCA (Linear, 1 KΩ) Two-Way Audio: 1-ch, 3.5mm, using the audio input
Compression StandardVideo Compression: S+265; H.265; S+264; H.264 Audio Compression: G.711A; G.711U; AAC; ADPCM_D Stream Type: Video; Video & Audio
NetworkNetwork Protocol: 802.1X; ARP; DDNS; DHCP; DNS; Easy DDNS; FTP; HTTP; HTTPS; ICMP; IGMP; IPv4; IPv6; Multicast; NFS; NTP; PPPoE; QoS; RTCP; RTP; RTSP; SMB/CIFS; SMTP; SNMP v1/v2/v3; SRTP; SSH; SSL; TLSv1.2; TCP; UDP; Unicast; UPnP Moblie Client: EasyLive Plus (Android, iOS) System Compatibility: ONVIF(Profile S/T/G); RTSP; CGI; SDK; P2P Web: IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+
Recording PlaybackMulti-channel Playback: 16 Record Mode: Manual Recording; Alarm Recording; Schedule Recording Storage Method: Local HDD Backup: USB storage device, Network Playback Function: Play/Pause/Stop/Reverse/Slow/Speed/Backwards 30s/Forwards 30s/Full Screen/ Backup (Video Editing)/Step/Digital Zoom/Instant Replay Dual Stream Record: Yes
AlarmGeneral Alarm: Motion Detection; Mask Alarm; Alarm Input(IPC); Alarm Input(NVR) Exceptions Alarm: Video Loss; Network Disconnected; No Disk; Illegal Access; Disk group space alert; Disk Full; Disk R/W Error; Recording Abnormal; Abnormal found in smart of disk; Abnormal temperature of the disk; Hot-spare Exception; Voltage Alarm(IPC); RTC Failure; IP Address Conflict; MAC Address Conflict; Disk Overload
Intelligent AnalyticsAI by Camera: Tripwire; Double Tripwire; Perimeter; Object Abandon; Object Missing; Running; Parking; Heatmap; Loitering; Video Abnormal; Audio Abnormal; On Duty Detection; Crowd Detection; Electric Bicycle Detection; People Counting; Link to Tracking; Smoke and Fire Detection; Environmental Temperature Measurement; Face Detection; Human Body Temperature Measurement; Smart Alarm; Face Recognition; Human/Vehicle Classification VCA Search: Early-warning Search; Behavior Search; Thermographic Retrieval; Duty Search; Electric Bicycle Retrieval; Face Search(Search by face attributes/event) VCA Report: Heatmap; People Counting; Face Statistics
Face DetectionFace Attributes Search: Gender; Age; Glasses; Face Mask; Body Temp.
Face RecognitionFace Picture Library: Up to 300 face libraries Up to 100000 base images Face Picture Comparison: Yes (Cooperate with facial recognition IPC)
StorageHDD Capacity: Up to 10 TB capacity for each HDD Disk Group: 2 Disk Group
External PortUSB: 1×USB2.0; 1×USB3.0 HDMI: 1×HDMI(supports up to 4K resolution output) VGA: 1×VGA Network Interface: 2×RJ-45, 10/100/1000 Mbps self-adaptive Ethernet port SATA: 2×SATA interface RS-232: 1×RS-232 RS-485: 1×RS-485 Alarm I/O: 16-ch, TTL inputs, 3mA, 3.3VDC; 4-ch, relay outputs, 1A, 24VDC
GeneralUI Language: Simple Chinese; Traditional Chinese; English; Spanish; Korean; Italian; Turkish; Russian; Thai; French; Polish; Dutch; Hebrew; Arabic; Vietnamese; German; Ukrainian; Portuguese; Albanian; Indonesian; Greek Power Supply: DC12V Power Consumption: <15W(HDD not included, idling) NetWeight: 2.25Kg GrossWeight: 3.85Kg Boundary Dimensions: 440(L)284(W)48(H)mm Package Dimensions: 510(L)150(W)385(H)mm Operating Temperature: -10℃~+55℃ (+14℉~+131℉) Operating Humidity: 10%~90%RH (non-condensing) Storage Temperature: -20℃~+60℃ (-4℉~+140℉) Package Kit: Network Video Recorder*1; Screw Pack*2; Mouse*1; Power Adapter(DC12V 3.33A)*1; European Standard Power Cord*1; Ear Plate*2; SATA Hard Disk Data Cable*2; SATA Power Cord*1; Instructions*1; Parts List*1
Warranty1-Year Brand Warranty

Description

Tiandy TC-R3240 Spec:I/B/N/H/V4.1 2HDD 40ch NVR

Tiandy TC-R3240 Spec:I/B/N/H/V4.1 2HDD 40ch NVR is a high-capacity network video recorder made for medium to large IP surveillance systems. It supports up to 40 IP cameras with 400Mbps incoming and 400Mbps outgoing bandwidth for smooth live view, recording, and playback. The NVR works with S+265, H.265, S+264, and H.264 video formats, where S+265 compression can reduce storage use by up to 75% while keeping clear video quality. This model supports camera resolutions up to 16MP and offers strong decoding performance, allowing 16MP cameras at 30fps or up to twenty 1080P channels at the same time. It supports 16-channel synchronous playback with stable preview and playback across many resolution levels. Independent HDMI and VGA outputs are available, with HDMI supporting up to 4K resolution. Multi-screen display options allow flexible monitoring layouts on both HDMI and VGA displays.

The TC-R3240 supports third-party IP cameras through ONVIF and RTSP and includes dual RJ-45 gigabit Ethernet ports for reliable network connection. It supports dual stream recording, cloud upgrade, and many network protocols for easy system integration. Audio input, audio output, and two-way audio are supported. Recording modes include manual, alarm-based, and scheduled recording, with backup options through USB or network. AI features work with supported cameras and include motion detection, tripwire, perimeter, people counting, face detection, fire and smoke detection, temperature measurement, and human or vehicle classification. Advanced search and report options such as heatmap, behavior search, and face statistics are also supported.

Overview of Tiandy TC-R3240 Spec:I/B/N/H/V4.1 2HDD 40ch NVR:

  • Up to 40-ch IP camera accesses
  • Incoming/Outgoing bandwidth: 400Mbps/400Mbps
  • S+265, H.265, S+264, H.264 video formats
  • Max. decoding capability: 16MP(30fps)×2 or 1080P(30fps)×20
  • 16-ch synchronous playback
  • Up to 10 TB capacity for each HDD
  • Independent HDMI and VGA outputs
  • HDMI output at up to 4K resolution
  • 2×RJ-45, 10/100/1000 Mbps self-adaptive Ethernet port
  • S+ 265 compression effectively reduces the storage space by up to 75%
  • Support cloud upgrade

The NVR supports two SATA hard drives with up to 10TB capacity per HDD. It runs on DC 12V power, consumes less than 15W without HDD, supports wide temperature ranges, includes all required accessories, and comes with a 1-year brand warranty.
