| UPS |
|---|
| Communication and Management | Management software: Site Monitor Interface type: USB/intelligent slot (SNMP card)(Excluding) |
|---|
| Environmental Parameters | Operating temperature: 0 – 40˚C Relative humidity: 5-95% without condensation Altitude: <1500m (when the altitude exceeds 1500m, derating is required according to GB/T3859.2) |
|---|
| System parameters and Standards | Conversion type: Online double conversion Installation mode: Tower System efficiency: >92% Switching time (power failure): 0 Noise: <58dB Language: Chinese/English LCD display is available: Yes Safety: IEC/EN62040-1-1 Electromagnetic capability: IEC/EN 62040-2, IEC/EN61000-3-11, IEC/EN61000-3-12, YD/T1095-2008 Surge protection: IEC/EN 62040-2, meeting IEC/EN61000-4.5 Protection level: IP20 |
|---|
| Input | Rectifier type: IGBT rectifier Rated voltage: 220VAC single-phase three-wire Input voltage range: Single-phase 120Vac-288Vac Input frequency range: 45Hz-65Hz Input power factor: >=0.99 for single phase/>0.95 for three-phase |
|---|
| Battery | Charging capability: >6h for 90% re-charging of the standard model Battery type: Lead-acid maintenance-free battery Battery backup time: Standard backup Battery brand: Leoch/Equivalent Battery Qty: 12 V-9AH, 20 pcs Battery Cabinet; External |
|---|
| Output | Rated power: 10kVA/8KW Rated Voltage: 208**/220/230/240VAC Voltage precision: ±1% Frequency precision: 0.25% Output mode: Terminal strip Load crest factor: 3:1 (comply with IEC62040-3) Step load performance: 100% Overload performance (% of the rated load): 105% – 125% 5mins, 125% – 150% 1 mins, 500ms for over 150% |
|---|

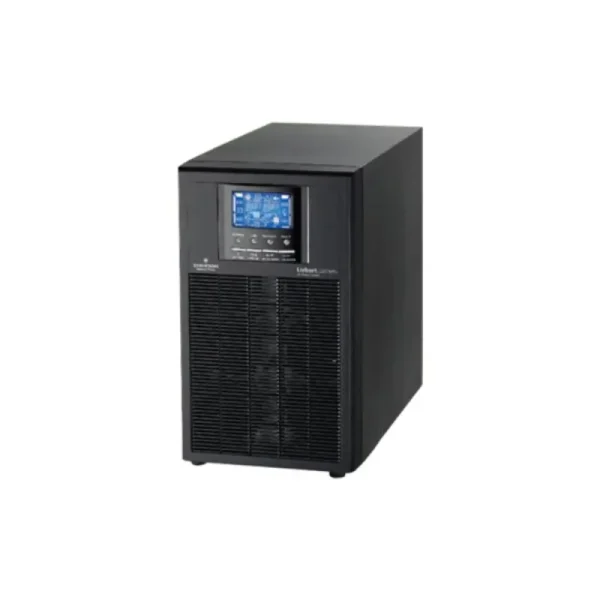

| Basic Information | Brand: Vertiv Country of Origin: USA Model: Liebert GXT MT+ |
|---|
| Physical | Dimensions (mm): 592 X 250 X 576 |
|---|
| Desktop |
|---|
| Warranty | 1 Year (UPS), 6 Months (Battery) |
|---|
