| Vertiv UPS |
|---|

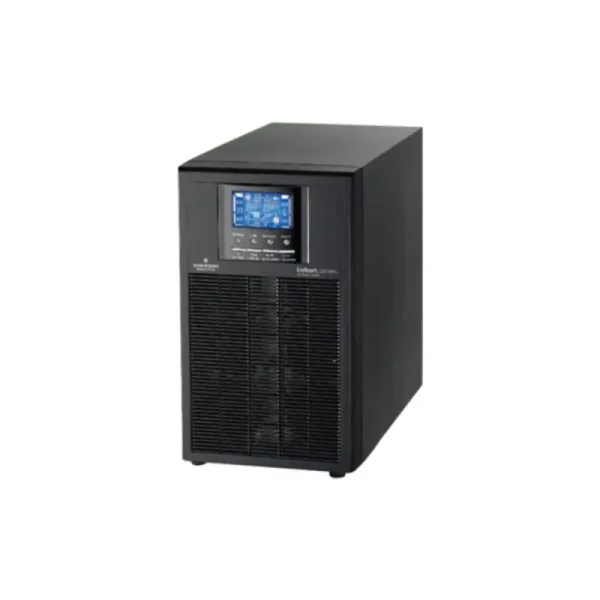

| General | Brand: Vertiv Model: Liebert GXT MT+EX CAPACITY: 6000 VA/ 5400 W |
|---|
| Input | Nominal Voltage: 208/220/230/240 VAC Input voltage range: 110-300 VAC (Based on load at 50%); 176-300VAC (Based on load at 100%) Frequency Range: 46Hz ~ 54 Hz or 56 ~ 64 Hz Phase: Single phase with ground Power Factor: ≧ 0.99 @ nominal voltage (100% load) |
|---|
| Output | Output voltage: 208**/220/230/240VAC Output Power factor: 0.9 AC Voltage Regulation: ±1% Frequency Range (Synchronized): 46Hz ~ 54 Hz or 56 ~ 64 Hz Frequency Range (Batt. Mode): 50 Hz or 60Hz ± 0.1 Hz Current Crest Ratio: 3:1 Harmonic Distortion: 3 % THD (linear load); 5 % THD (non-linear load) Overload Capability: AC Mode- 100%~110%: 30min; 110%~130%: 5min; >130% : 10sec; Battery Mode- 100%~110%: 3min; 110%~130%: 30sec; >130% : 10sec Transfer Time: AC Mode to Batt. Mode: Zero; Inverter to Bypass:0 ms (Inv - Bypass),4 ms (Bypass- Inv) Waveform (Batt. Mode): Pure Sinewave |
|---|
| Efficiency | AC Mode: 92% Battery Mode: 90% |
|---|
| Battery | Battery Numbers: 16 ~ 20 Charging Current: Default 4A. Settable to 1/2/4/6 A (6A available for 16 number of batteries only*) Charging Voltage: 218 Vdc +/- 1% (Based on 16pcs batteries) |
|---|
| Physical | Long-run Model Dimension DxWxH(mm): 369 x 190 x 318 Net Weight (kgs): 12 |
|---|
| Environment | Operation Humidity: 0-95 % & non-condensing Operation Temperature: 0~40 deg.C Operation Altitude: <1000 m *** Noise Level Less than: 55dB @ 1 Meter |
|---|
| Management | Smart RS-232 or USB: Supports Windows 2000/2003/XP/Vista/2008/7/8, Linux, Unix and MAC Intelligent Slot for Optional cards: Power monitoring though SNMP/ Modbus/ Dry Contacts |
|---|
| Warranty | 1 Year (UPS) |
|---|
