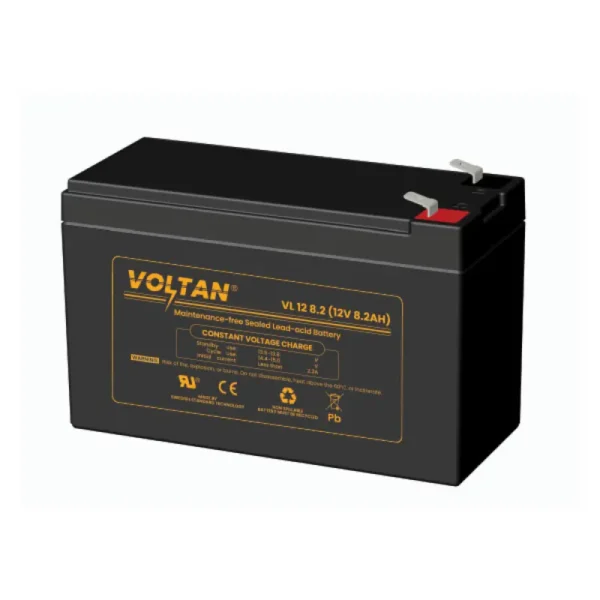

| Voltan Battery |
|---|
| Nominal Voltage | 12 V |
|---|
| Capacity (25oC) | 20HR(10.5V): 8.2Ah 10HR(10.5V): 6.6Ah 1HR(9.60V): 4.58Ah |
|---|
| Dimension | Length: 152±1.5mm (5.98inch) Width: 67±1mm (2.64inch) Height: 99±1mm (3.90inch) Total Height: 105±1mm (4.13inch) |
|---|
| Approx. Weight | 2.10kg (4.63lbs)±5% |
|---|
| Terminal type | T1 |
|---|
| Internal resistance (Fully charged, 25oC) | Approx. 28mΩ |
|---|
| Capacity affected by Temperature (20HR) | 40oC: 102% 25oC: 100% 0oC: 85% -15oC: 65% |
|---|
| Self-Discharge (25oC) | 3 month: Remaining Capacity: 91% 6 month: Remaining Capacity: 82% 12 month: Remaining Capacity: 65% |
|---|
| Nominal Operating Temperature | 25oC±3oC(77oF±5oF) |
|---|
| Operating Temperature Range | Discharge: -15oC~50oC(5oF~122oF) Charge: -10oC~50oC(14oF~122oF) Storage: -20oC~50oC(-4oF~122oF) |
|---|
| Float Charging Voltage (25oC) | 13.60 to 13.80V Temperature compensation: -18mV/oC |
|---|
| Cyclic Charging Voltage (25oC) | 14.50 to 14.90VTemperature compensation:-30mV/oC |
|---|
| Maximum Charging Current | 2.1A |
|---|
| Terminal Material | Copper |
|---|
| Maximum Discharge Current | 105A(5 sec.) |
|---|
| Designed Floating Life (25oC) | 5 years+ |
|---|
| Warranty | 6 Month |
|---|
