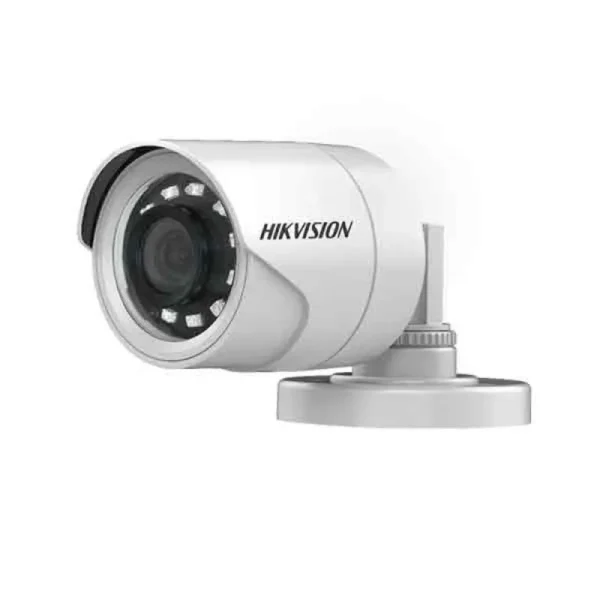

| CC Cam |
|---|
| General Information | Material: Plastic Operating Condition‘-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation) Power Supply: 12 VDC ± 25% Power Consumption: Max. 2.5 W Protection Level: IP66 IR Range: Up to 20 m Communication: HIKVISION-C Dimensions: Φ 70 mm × 153.6 mm × 60.4 mm (Φ 2.76″ × 6.05″ × 2.38″) Weight: Approx. 310 g (0.68 lb.) |
|---|
| Camera | Image Sensor: 2 MP CMOS Signal System: PAL/NTSC Frame Rate PAL: 1080p@25fps NTSC: 1080p@30fps Resolution: 1920 (H) × 1080 (V) Min. Illumination: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR Shutter TimePAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s Day & Night: ICR WDR (Wide Dynamic Range)Digital WDR Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 180°, Rotate: 0° to 360° |
|---|
| Image | Image Mode: STD/HIGH-SAT AGCS: Support Day/Night Mode: Auto/Color/BW (Black and White) White Balance: Auto/Manual HLC: Yes BLC (Backlight Compensation): Yes Language: English Functions: Brightness, Sharpness, Mirror, Smart IR |
|---|
| Lens | Lens : 2.8 mm, 3.6 mm, 6 mm fixed lens Horizontal Field of View: 106.4°(2.8 mm), 79.6°(3.6 mm), 51.9°(6 mm) Lens Mount: M12 |
|---|
| Interface | Video Output: Switchable TVI/AHD/CVI/CVBS |
|---|
| More Information | Approval: Protection IP66 |
|---|
| Warranty | 1 Years Brand Warranty |
|---|
